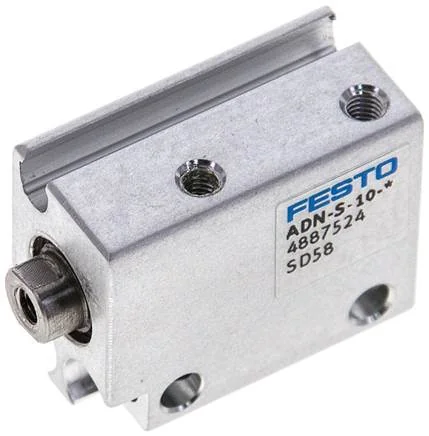

Festo - ADN-S-10-10-I-4887524 - Compact Cylinder

SKU: festo-adn-s-10-10-i-4887524

Browse all parts
Festo - ADN-S-10-10-I-4887524 - Compact Cylinder

€45.63€39.00 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€45.63

Brand
Festo
Variants
One-sided piston rod
Dampening
No dampening
Stroke (mm)
10
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Fastening Type
With throughway bores
Piston Rod End
Female thread
Piston Ø (mm)
10
Housing Material
eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Construction Set Up
Kolbenstange
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M3
Installation Position
arbitrary
Dynamic Seals Material
TPE-U(PU)
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0.1 to 0.8
Ambient Temperature (°C)
60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,012
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
30,2
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
47
EAN
4052568419042
Manufacturer
Festo
