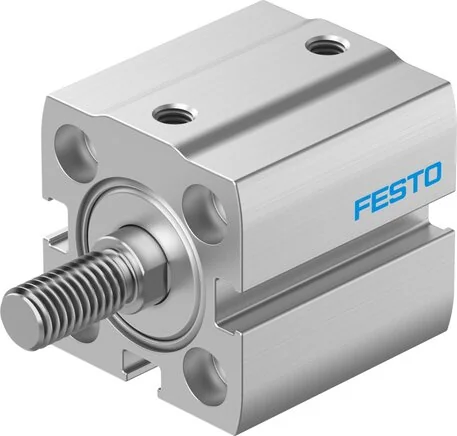

Festo - ADN-S-20-20-A-P-8091445 - Compact Cylinder

SKU: festo-adn-s-20-20-a-p-8091445

Browse all parts
Festo - ADN-S-20-20-A-P-8091445 - Compact Cylinder

€62.29€53.24 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€62.29

Brand
Festo
Variants
One-sided piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
20
Material Note
RoHs compliant
Cover Material
Aluminium-Knetlegierung, eloxiert
Fastening Type
With Accessories
Piston Rod End
Male thread
Piston Ø (mm)
20
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Construction Set Up
Kolbenstange
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M5
Installation Position
arbitrary
Dynamic Seals Material
NBR
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,06 to 1
Ambient Temperature (°C)
80
Base Weight At 0 mm Stroke (g)
51
Corrosion Resistance Class KBK
1 - low corrosion stress
Moving Mass At 0 mm Stroke (g)
11
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,14
Weight Supplement Per 10 mm Stroke (g)
26
Supplement Moved Mass Per 10 mm Stroke (g)
6
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
141
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
188
EAN
4052568461584
Manufacturer
Festo
