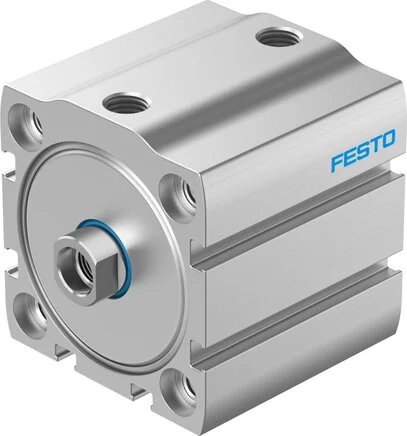

Festo - ADN-S-50-40-I-P-A-F1A-8142904 - Compact Cylinder

SKU: festo-adn-s-50-40-i-p-a-f1a-8142904

Browse all parts
Festo - ADN-S-50-40-I-P-A-F1A-8142904 - Compact Cylinder

€164.70€140.77 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€164.70

Brand
Festo
Variants
One-sided piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
40
Material Note
RoHs compliant
Cover Material
Aluminium-Knetlegierung, eloxiert
Fastening Type
with female thread
Piston Rod End
Female thread
Piston Ø (mm)
50
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Kolbenstange
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
G1/8
Installation Position
arbitrary
Dynamic Seals Material
TPE-U(PU)
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,04 to 1
Ambient Temperature (°C)
80
Base Weight At 0 mm Stroke (g)
324
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Moving Mass At 0 mm Stroke (g)
104
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
1
Weight Supplement Per 10 mm Stroke (g)
63
Supplement Moved Mass Per 10 mm Stroke (g)
16
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
1057
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
1178
EAN
4052568571689
Manufacturer
Festo
