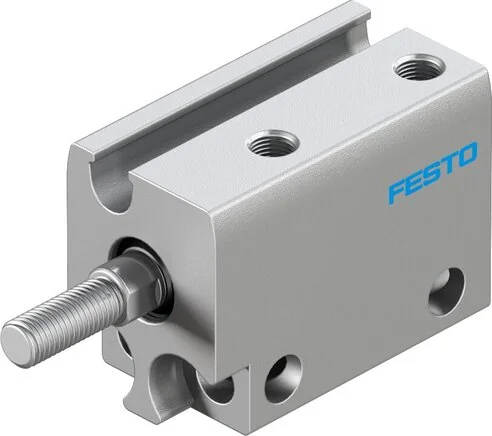

Festo - ADN-S-6-5-A-A-F1A-8142515 - Compact Cylinder

SKU: festo-adn-s-6-5-a-a-f1a-8142515

Browse all parts
Festo - ADN-S-6-5-A-A-F1A-8142515 - Compact Cylinder

€64.68€55.28 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€64.68

Brand
Festo
Variants
One-sided piston rod
Dampening
No dampening
Stroke (mm)
5
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Fastening Type
With throughway bores
Piston Rod End
Male thread
Piston Ø (mm)
6
Housing Material
eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Kolbenstange
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M3
Installation Position
arbitrary
Dynamic Seals Material
TPE-U(PU)
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,2 to 0,8
Ambient Temperature (°C)
60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,006
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
17
EAN
4052568570439
Manufacturer
Festo
