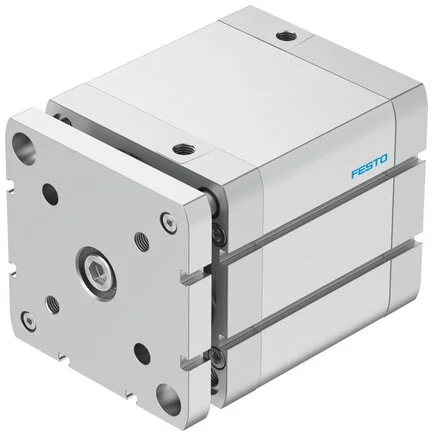

Festo - ADNGF-100-60-P-A-554293 - Compact Cylinder

SKU: festo-adngf-100-60-p-a-554293

Browse all parts
Festo - ADNGF-100-60-P-A-554293 - Compact Cylinder

€577.00€493.16 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€577.00

Brand
Festo
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
60
Material Note
RoHs compliant
Cover Material
Aluminium-Druckguss, beschichtet
Piston Ø (mm)
100
Seals Material
TPE-U(PUR)
Moving Mass (g)
1321
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 21287
End Plate Material
Aluminium-Knetlegierung, eloxiert
Position Detection
For proximity switch
Construction Set Up
Profilrohr
Piston Rod Material
High-alloyed steel
Pneumatic Connection
G1/8
Installation Position
arbitrary
Cylinder Tube Material
Aluminium-Knetlegierung, gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material Collar Screws
Steel
Principle Of Operation
double acting
Anti-twist Lock / Guide
Guide rod with yoke
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-20 to 80
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
2,5
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
4524
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
4712
EAN
4052568199180
Manufacturer
Festo
