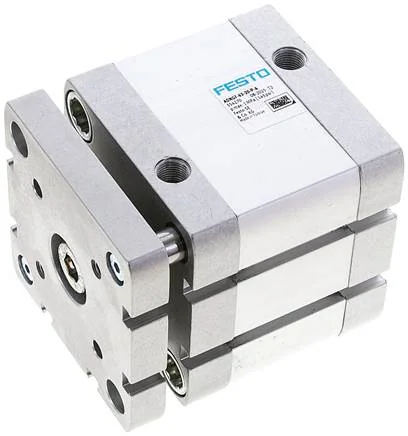

Festo - ADNGF-50-80-P-A-554267 - Compact Cylinder

SKU: festo-adngf-50-80-p-a-554267

Browse all parts
Festo - ADNGF-50-80-P-A-554267 - Compact Cylinder

€322.18€275.37 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€322.18

Brand
Festo
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
80
Material Note
RoHs compliant
Cover Material
Aluminium-Knetlegierung, eloxiert
Piston Ø (mm)
50
Seals Material
TPE-U(PUR)
Moving Mass (g)
516
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 21287
End Plate Material
Aluminium-Knetlegierung, eloxiert
Position Detection
For proximity switch
Construction Set Up
Profilrohr
Piston Rod Material
High-alloyed steel
Pneumatic Connection
G1/8
Installation Position
arbitrary
Cylinder Tube Material
Aluminium-Knetlegierung, gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material Collar Screws
Steel
Principle Of Operation
double acting
Anti-twist Lock / Guide
Guide rod with yoke
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-20 to 80
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
1057
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
1178
EAN
4052568198923
Manufacturer
Festo
