Festo - ADVC-12-5-P-A-530572 - Short Stroke Cylinder

SKU: festo-advc-12-5-p-a-530572

Browse all parts

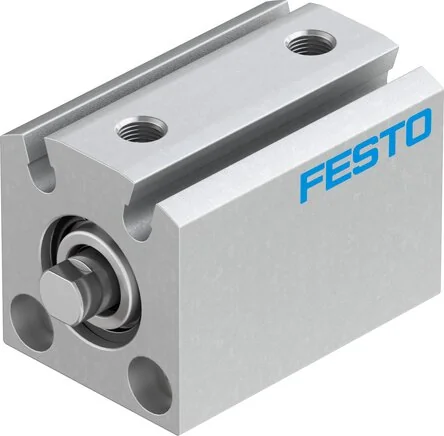

Festo - ADVC-12-5-P-A-530572 - Short Stroke Cylinder

€89.74€76.70 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€89.74

Brand
Festo
Dampening
P: Elastic silencer rings / plates double-sided
Stroke (mm)
5,0
Cover Material
Aluminium wrought alloy, anodized
Fastening Type
With throughway bores, With Accessories, Selectively:
Seals Material
TPE-U(PU)
Moving Mass (g)
8,50
Housing Material
Aluminium wrought alloy, anodized
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Piston, piston rod
Piston Rod Material
High-alloyed steel
Material Information
Copper and PTFE-free
Piston Diameter (mm)
12
Pneumatic Connection
M5
Installation Position
arbitrary
Principle Of Operation
double acting
Operating Pressure (bar)
1 to 10
Ambient Temperature (°C)
-20 to 80
Corrosion Resistance Class KBK
1 - low corrosion stress
Theoretical Force At 6 bar, Flow (N)
68,0
Theoretical Force At 6 bar, Return Flow (N)
51,0
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568085865
Manufacturer
Festo
