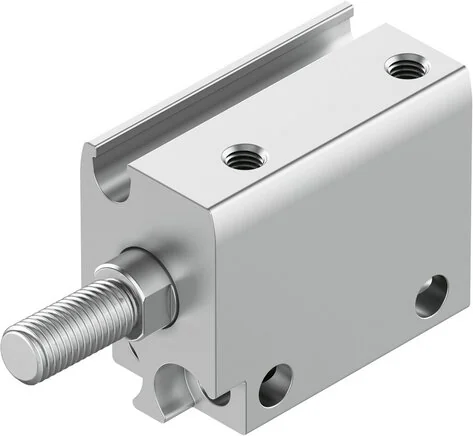

Festo - AEN-S-10-5-A-A-8080584 - Compact Cylinder

SKU: festo-aen-s-10-5-a-a-8080584

Browse all parts
Festo - AEN-S-10-5-A-A-8080584 - Compact Cylinder

€53.22€45.49 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€53.22

Brand
Festo
Variants
One-sided piston rod
Dampening
No dampening
Stroke (mm)
5
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Fastening Type
With throughway bores
Piston Rod End
Male thread
Piston Ø (mm)
10
Moving Mass (g)
4,5
Housing Material
eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Kolbenstange
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M3
Installation Position
arbitrary
Dynamic Seals Material
TPE-U(PU)
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
drückend
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,012
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
5,3
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
41,7
EAN
4052568447397
Manufacturer
Festo
