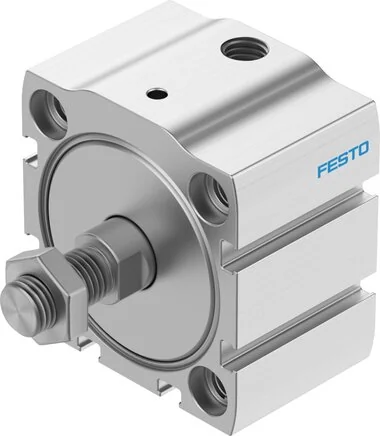

Festo - AEN-S-50-10-A-P-A-8092153 - Compact Cylinder

SKU: festo-aen-s-50-10-a-p-a-8092153

Browse all parts
Festo - AEN-S-50-10-A-P-A-8092153 - Compact Cylinder

€130.50€111.54 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€130.50

Brand
Festo
Variants
One-sided piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
10
Material Note
RoHs compliant
Cover Material
Aluminium-Knetlegierung, eloxiert
Fastening Type
With Accessories
Piston Rod End
Male thread
Piston Ø (mm)
50
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Kolbenstange
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
G1/8
Installation Position
arbitrary
Dynamic Seals Material
TPE-U(PU)
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
drückend
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
0 to 80
Base Weight At 0 mm Stroke (g)
324
Corrosion Resistance Class KBK
1 - low corrosion stress
Moving Mass At 0 mm Stroke (g)
104
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
1
Weight Supplement Per 10 mm Stroke (g)
63
Supplement Moved Mass Per 10 mm Stroke (g)
16
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
66,2
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
1106
EAN
4052568302061
Manufacturer
Festo
