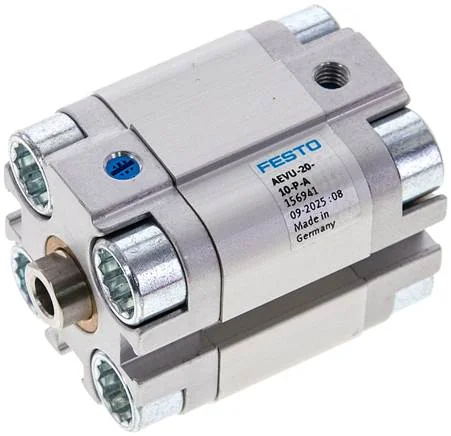

Festo - AEVU-20-10-P-A-156941 - Compact Cylinder

SKU: festo-aevu-20-10-p-a-156941

Browse all parts
Festo - AEVU-20-10-P-A-156941 - Compact Cylinder

€180.11€153.94 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€180.11

Brand
Festo
Variants
One-sided piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
10
Cover Material
Aluminium wrought alloy
Fastening Type
With Accessories
Piston Rod End
Female thread
Piston Ø (mm)
20
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M5
Position Detection
For proximity switch
Construction Set Up
Kolbenstange
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M5
Installation Position
arbitrary
Cylinder Tube Material
Aluminium wrought alloy
Dynamic Seals Material
TPE-U(PU)
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material Collar Screws
Zinc plated steel
Principle Of Operation
single action
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-20 to 80
Base Weight At 0 mm Stroke (g)
149
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Moving Mass At 0 mm Stroke (g)
20
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,14
Weight Supplement Per 10 mm Stroke (g)
23
Supplement Moved Mass Per 10 mm Stroke (g)
6
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
171
EAN
4052568121846
Manufacturer
Festo
