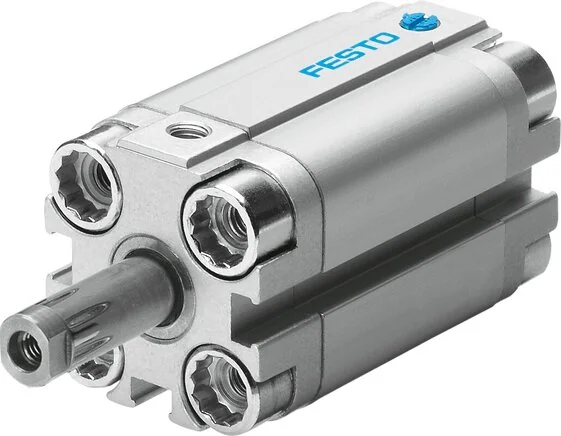

Festo - AEVUZ-12-5-P-A-157206 - Compact Cylinder

SKU: festo-aevuz-12-5-p-a-157206

Browse all parts
Festo - AEVUZ-12-5-P-A-157206 - Compact Cylinder

€195.00€166.67 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€195.00

Brand
Festo
Variants
One-sided piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
5
Cover Material
Aluminium wrought alloy
Fastening Type
With Accessories
Piston Rod End
Female thread
Piston Ø (mm)
12
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M3
Position Detection
For proximity switch
Construction Set Up
Kolbenstange
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M5
Installation Position
arbitrary
Cylinder Tube Material
Aluminium wrought alloy
Dynamic Seals Material
TPE-U(PU)
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material Collar Screws
High-alloyed stainless steels
Principle Of Operation
ziehend
Operating Pressure (MPa)
0,15 to 1
Ambient Temperature (°C)
-20 to 80
Base Weight At 0 mm Stroke (g)
87
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Moving Mass At 0 mm Stroke (g)
8
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,07
Weight Supplement Per 10 mm Stroke (g)
15
Supplement Moved Mass Per 10 mm Stroke (g)
2
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
42
EAN
4052568124229
Manufacturer
Festo
