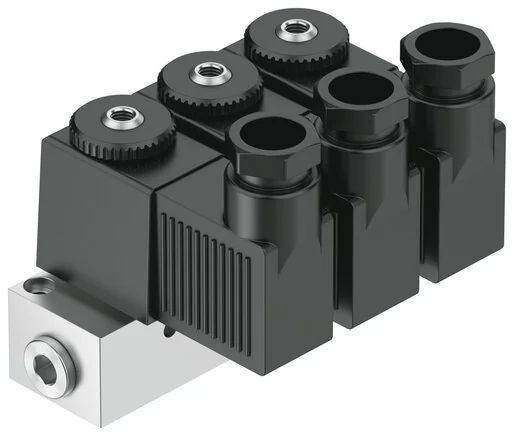

Festo - BMFH-3-3-M5-4523 - Solenoid Valve

SKU: festo-bmfh-3-3-m5-4523

Festo - BMFH-3-3-M5-4523 - Solenoid Valve

€465.52€397.88 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€465.52

Brand
Festo
Reset Mode
Mechanical spring
Control Type
Direct
Actuation Type
Electrical
Fastening Type
With throughway bores
Valve Function
3x3/2 geschlossen monostabil
Housing Material
Aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Sealing Principle
Soft
Nominal Width (mm)
1,3
Construction Set Up
Poppet valve with reset spring
Protection Category
IP65
Electrical Connection
Plug
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
M5
Pneumatic Connection 3
M5
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
0 to 0.8
Ambient Temperature (°C)
-5 to 40
Power Consumption, Hold (W)
6
Power Consumption, Pull (W)
7,5
Max. Number Of Valve Positions
3
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
50
EAN
4052568110529
Manufacturer
Festo
