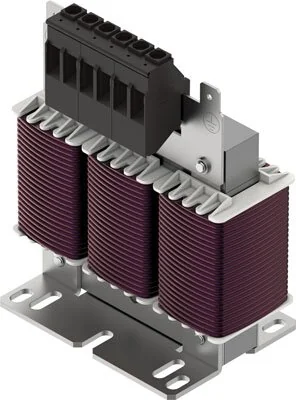

Festo - CAMF-C6-FD-C6-11A-8096867 - Ballast Inductance

SKU: festo-camf-c6-fd-c6-11a-8096867

Browse all parts
Festo - CAMF-C6-FD-C6-11A-8096867 - Ballast Inductance

€91.31€78.04 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€91.31

Brand
Festo
Fastening Type
Assembly plate, screwed
Protection Category
IP00
Dimensions W x L x H
60 mm x 80 mm x 116 mm
Material Information
ENEC, c UL - Recognized (OL)
LABS containing materials included, RoHs compliant
Installation Position
Horizontal
Insulation Voltage (V)
4.000
Network Frequency (Hz)
50 to 60
Nominal Inductance (mH)
3,7
Short Circuit Resistance
no
Ambient Temperature (°C)
-10 to 40
Bearing Temperature (°C)
-10 to 40
Operating Voltage Range AC (V)
0 to 600
Nominal Inductance Tolerance (%)
10
Electrical Connection 1, Function
Spannungsversorgung
Current Carrying Capacity At 40°C (A)
6
Electrical Connection 1, Connection Type
Multi tube holder
Electrical Connection 1, Occupied Pin / Wire
6
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-RL
Electrical Connection 1, Connection Technology
Screw clamp
Electrical Connection 1, Number Of Pins / Wires
6
Electrical Connection 1, Conductor Cross Section (mm²)
4
EAN
4052568298784
Manufacturer
Festo
