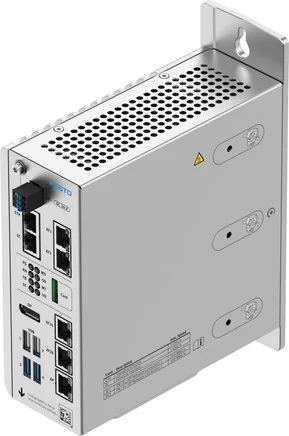

Festo - CEPE-H8GB-128GB-M1-8165401 - Control Unit

SKU: festo-cepe-h8gb-128gb-m1-8165401

Browse all parts
Festo - CEPE-H8GB-128GB-M1-8165401 - Control Unit

€4,273.02€3,652.15 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,273.02

Brand
Festo
Marker
Variablenkonzept CODESYS
KC-mark
KC-EMV
CPU Data
Dual Core 2,2 GHz
Permission
RCM mark
Material Note
RoHs compliant
Memory Medium
SSD 128 GB
Fastening Type
Permanently screwed
Screws Material
Nickel-plated steel
Housing Material
High-alloyed stainless steels
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Relative Humidity
Not condensing
Setting IP Address
statisch über Webserver
Protection Category
IP20
Additional Functions
Festo AX Controls Motion Robotic
Dimensions W x L x H
69 mm x 174 mm x 222 mm
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Installation Position
vertical
Max. Power Supply (A)
4
Max. Setup Height (m)
3.000
LABS (PWIS) Conformity
VDMA24364-Zone III
Nominal Altitude Of Use
<= 2000 m ASL (> 79,5 kPa)
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-20 to 70
Ethernet Interface, Report
TCP/IP
Fieldbus Interface, Report
EtherCAT
Reverse Polarity Protection
yes
Ethernet Interface, Function
Netzwerk
Fieldbus Interface, Function
EtherCAT Master
Power Blackout Bridging (ms)
10
Ethernet, Data Transfer Speed
1 Gbit/s
Corrosion Resistance Class KBK
0 - No corrosion stressing
Operating Voltage Range DC (V)
20.4 to 30
Nominal Operating Voltage DC (V)
24
Fieldbus Interface, Transfer Rate
100 Mbit/s
Ethernet Interface, Transfer Speed
1 Gbit/s
Ethernet Interface, Connection Type
socket / container / ….
Fieldbus Interface, Connection Type
socket / container / ….
Buffering Time Real-Time Clock (weeks)
520
Ethernet Interface, Connection Pattern
995789
Fieldbus Interface, Connection Pattern
995789
Ethernet Interface, Connection Technology
RJ45
Fieldbus Interface, Connection Technology
RJ45
Ethernet Interface, Number Of Pins / Wires
8
Protect Against Direct And Indirect Contact
PELV
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
EAN
4052568774868
Manufacturer
Festo
