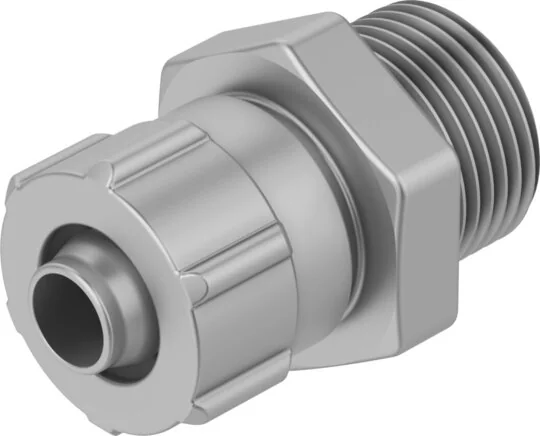

Festo - CK-1/4-PK-4-2029 - Quick Fitting

SKU: festo-ck-1-4-pk-4-2029

Browse all parts
Festo - CK-1/4-PK-4-2029 - Quick Fitting

€6.03€5.15 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€6.03

Brand
Festo
Design
straight shape
Packing Size
10
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy, anodised
Gasket Material
TPE-U(PU)
Operating Medium
Wasser (flüssig, eisfrei)
Seal Type On Stud
gasket
Nominal Width (mm)
2,9
Locking Nut Material
Aluminium-Knetlegierung, eloxiert
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G1/4
Pneumatic Connection 2
für Stecknippel Innen-Ø 4 mm mit Mutter
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Tightening Torque (Nm)
11,00
Information About Operating Pressure
Wasser: max. 0,6 MPa bei max. 50 °C
Note On Operating And Control Medium
Wasser: G-Gewinde nur möglich mit Dichtring Typ OL als zusätzlichem Zubehör
Tolerance To Nominal Tightening Torque
± 10 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568008154
Manufacturer
Festo
