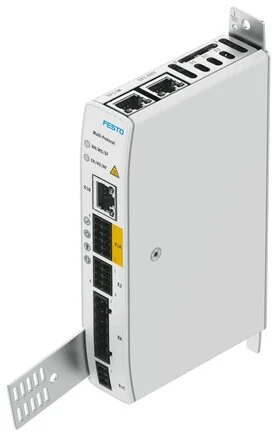

Festo - CMMT-ST-C8-1C-MP-S0-8163946 - Servo Drive Controller

SKU: festo-cmmt-st-c8-1c-mp-s0-8163946

Browse all parts
Festo - CMMT-ST-C8-1C-MP-S0-8163946 - Servo Drive Controller

€673.25€575.43 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€673.25

Brand
Festo
Display
LED green / yellow / red
KC-mark
KC-EMV
Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Fastening Type
With Slot rail
Operating Mode
PWM mit 16 oder 20 kHz
Safety Function
Sicherer Stopp 1 mit Zeitsteuerung (SS1-t)
Process Coupling
Interpolated Mode CSV
Protection Class
III
Fieldbus Coupling
PROFINET
Relative Humidity
Not condensing
Certification Body
UL E331130
Proof Test Interval
STO / 0,25 a (EC-Motor mit Diagnose)
Protection Category
IP20
Protection Function
Softwareendlagenerkennung
Peak Performance (W)
800
Communication Profile
PROFIdrive
Installation Position
vertical
Max. Setup Height (m)
2.000
Output Frequency (Hz)
0 to 20000
Over-voltage Category
I
LABS (PWIS) Conformity
VDMA24364-Zone III
Performance Level (PL)
STO / Kat. 3, PLe (Schrittmotor/EC-Motor mit Diagnose)
Switching Logic Inputs
PNP (Positive switching)
Degree Of Contamination
2
Nominal Current Setting
Via software
Output Voltage Range AC
0 V up to input voltage
Properties Logic Inputs
Not galvanically separated
Switching Logic Outputs
PNP (Positive switching)
Hardware Error Tolerance
1
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-25 to 55
Logic Input Specification
depending on IEC 61131-2, type 3
Operating Mode Controller
gesteuerter Betrieb
SFF Safe Failure Fraction
99
Work Area Logic Input (V)
-3 to 30
Ethernet Interface, Report
TCP/IP
Fieldbus Interface, Report
PROFINET IRT
Nominal Output Current (A)
8
Adjustable Current Lowering
Via software
Diagnose Degree Of Coverage
STO / niedrig (EC-Motor ohne Diagnose)
Encoder Interface, Function
Inkrementalgeber
Ethernet Interface, Function
Parameterising and commissioning
Fieldbus Interface, Function
Fieldbus
Safety Integrity Level (SIL)
STO / SIL 3 / SILCL 3 (Schrittmotor/EC-Motor mit Diagnose)
Permitted Range Logic Voltage
± 15 %
Quantity Digital Logic Inputs
6
Quantity Of Diagnosis Outputs
1
Quantity Of Safe 2-pin Inputs
1
Max. Peak Current Duration (s)
3
Properties Digital Logic Outputs
Not galvanically separated
Fieldbus Interface, Transfer Rate
100 Mbit/s
Braking Resistance, External (Ohm)
6
Nominal Performance Controller (W)
300
Nominal Voltage Load Supply DC (V)
24 to 48
Fieldbus Interface, Connection Type
2x socket
Nominal Voltage Logic Supply DC (V)
24
Quantity Of High-speed Logic Inputs
2
Max. Output Current Holding Brake (A)
1
Peak Current Per Phase, Effective (A)
20
Quantity Of High-speed Switch Outputs
2
Quantity Digital Logic Outputs 24 V DC
2
Max. Current Digital Logic Outputs (mA)
100
Permissible Range For Load Power Supply
-1
Max. Intermediate Circuit Voltage DC (V)
60
Nominal Current Per Phase, Effective (A)
8
Fieldbus Interface, Connection Technology
RJ45
Quantity Of Zero Potential Switch Outputs
1
Time Resolution Of High-speed Logic Inputs
1
Time Resolution Of High-speed Switch Outputs
1
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Power Input Logic Supply With Parking Brake (A)
2
Power Input Logic Supply Without Parking Brake (A)
1
Max. Current Of The Zero Potential Switch Outputs (mA)
100
Max. Length Motor Line Without Ext. Network Filter (m)
25
Max. Voltage Drop From Logic Supply To Brake Output (V)
1
Max. Continuous Power Of The External Braking Resistance (IEC) (W)
490
EAN
4052568631956
Manufacturer
Festo
