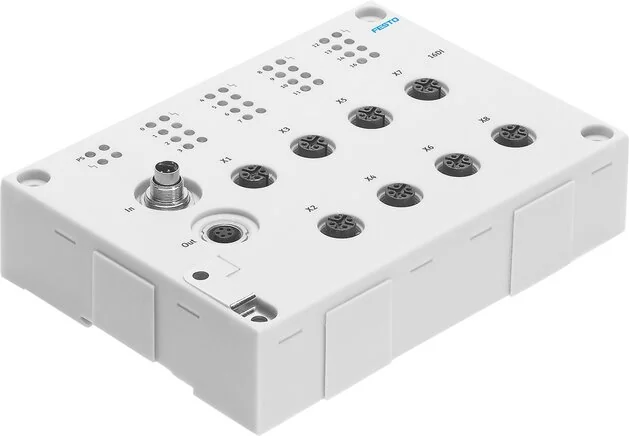

Festo - CP-E16-M12-EL-546923 - Input Module

SKU: festo-cp-e16-m12-el-546923

Browse all parts
Festo - CP-E16-M12-EL-546923 - Input Module

€513.08€438.53 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€513.08

Brand
Festo
KC-mark
KC-EMV
Permission
C-tick, c UL us - Listed (OL)
LED Displays
16 Kanalstatus, 2 Moduldiagnose, 4 Gruppendiagnose
Switch Level
Signal 0: <= 6 V, Signal 1: >= 8.6 V
Cover Material
PA reinforced
Fastening Type
With throughway bores, With Slot rail, Selectively:
Housing Material
PA reinforced
Protection Category
IP65, IP67
Fuse (Short Circuit)
Internal electronic fuse Per group
Material Information
RoHs compliant
Input Debouncing Time
3 ms (0.5 ms, 10 ms, 20 ms parameterisable)
Max. Number Of Inputs
16
Switching Logic Inputs
PNP (Positive switching)
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Characteristic Curves Inputs
IEC1131-T2
Residual Ripple Load Voltage
4 Vss
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range DC (V)
18 to 30
Nominal Operating Voltage DC (V)
24
Operating Voltage DC Load Voltage (V)
24
Potential Separation Channel - Channel
no
Max. Cumulative Currents Per Module (A)
0,7
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
EAN
4052568185565
Manufacturer
Festo
