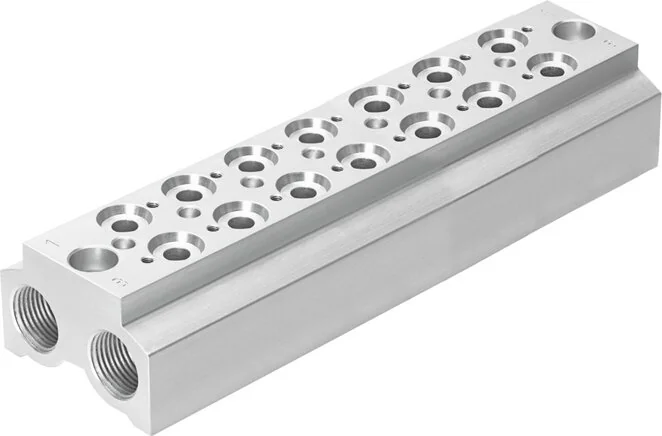

Festo - CPE10-3/2-PRS-1/4-7-550555 - Connection Block

SKU: festo-cpe10-3-2-prs-1-4-7-550555

Browse all parts
Festo - CPE10-3/2-PRS-1/4-7-550555 - Connection Block

€99.87€85.36 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€99.87

Brand
Festo
Material Note
RoHs compliant
Burst Pressure (MPa)
5
Fastening Type Valve
with female thread
Pitch Dimension (mm)
16
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 3
G1/4
Pneumatic Connection 5
G1/4
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
-0,09 to 1
Ambient Temperature (°C)
-5 to 50
Connection Strip Material
Aluminium wrought alloy
Max. Number Of Pressure Zones
2
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Number Of Valve Positions
7
Fastening Type Connection Block
With throughway bores
Max. Tightening Torque Valve Fastening (Nm)
1,2
EAN
4052568094133
Manufacturer
Festo
