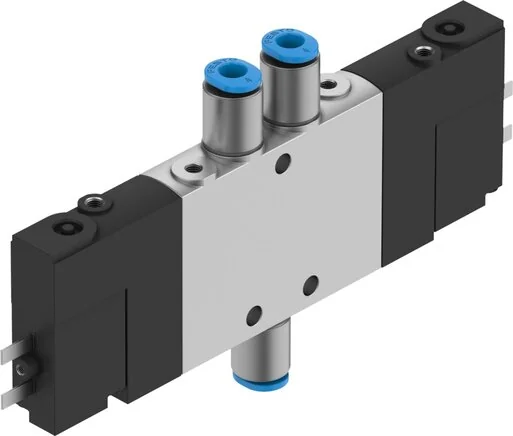

Festo - CPE10-M1BH-5/3G-QS6-B-533153 - Solenoid Valve

SKU: festo-cpe10-m1bh-5-3g-qs6-b-533153

Browse all parts
Festo - CPE10-M1BH-5/3G-QS6-B-533153 - Solenoid Valve

€331.32€283.18 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€331.32

Brand
Festo
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100% in Verbindung mit Haltestromabsenkung
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
5/3 closed
Build Width (mm)
10
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Certification Body
UL MH19482
Control Air Supply
Internal
Nominal Width (mm)
4
Construction Set Up
Piston pusher
Protection Category
acc. to IEC 60529
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
2 pin
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
16
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-6
Pneumatic Connection 2
QS-6
Pneumatic Connection 3
M7
Pneumatic Connection 4
QS-6
Pneumatic Connection 5
M7
Shifting Time Off (ms)
20
Maritime Classification
see Certificate
Valve Space - Labelling
Sign carrier
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,3 to 0,8
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
24 V DC: 1,28 W
Control Air 12 Connection
M3
Control Air 14 Connection
M3
Exhaust Control Connection 82
M3
Exhaust Control Connection 84
M3
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
-1,5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
1200
Max. Negative Test Impulse For 1 Signal
900
Standard Nominal Flow Rate (Standardised To DIN 1343)
300
EAN
4052568166328
Manufacturer
Festo
