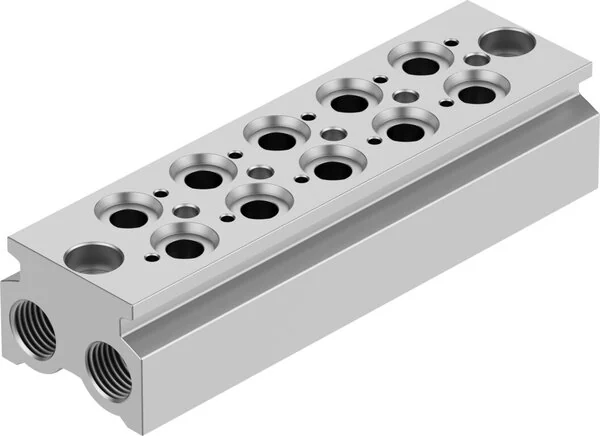

Festo - CPE18-3/2-PRS-3/8-5-550571 - Connection Block

SKU: festo-cpe18-3-2-prs-3-8-5-550571

Browse all parts
Festo - CPE18-3/2-PRS-3/8-5-550571 - Connection Block

€92.87€79.38 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€92.87

Brand
Festo
Material Note
RoHs compliant
Burst Pressure (MPa)
5
Fastening Type Valve
with female thread
Pitch Dimension (mm)
26
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G3/8
Pneumatic Connection 3
G3/8
Pneumatic Connection 5
G3/8
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
-0,09 to 1
Ambient Temperature (°C)
-5 to 50
Connection Strip Material
Aluminium wrought alloy
Max. Number Of Pressure Zones
2
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Number Of Valve Positions
5
Fastening Type Connection Block
With throughway bores
Max. Tightening Torque Valve Fastening (Nm)
2
EAN
4052568094287
Manufacturer
Festo
