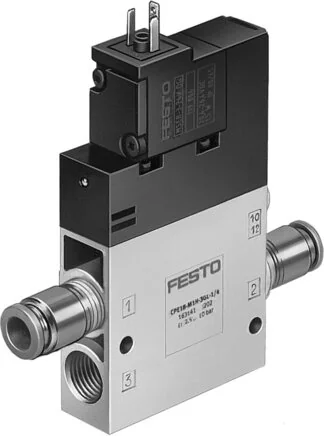

Festo - CPE18-M1H-3GL-QS-8-163149 - Solenoid Valve

SKU: festo-cpe18-m1h-3gl-qs-8-163149

Browse all parts
Festo - CPE18-M1H-3GL-QS-8-163149 - Solenoid Valve

€208.18€177.93 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€208.18

Brand
Festo
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Pneumatic spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Build Width (mm)
18
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Certification Body
UL MH19482
Control Air Supply
Internal
Nominal Width (mm)
8
Construction Set Up
Piston pusher
Protection Category
acc. to IEC 60529
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
C shape
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
28
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-8
Pneumatic Connection 2
QS-8
Pneumatic Connection 3
G1/4
Shifting Time Off (ms)
18
Maritime Classification
see Certificate
Valve Space - Labelling
Sign carrier
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,25 to 1
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
24 V DC: 1,5 W
Control Air 12 Connection
M5
Exhaust Control Connection 82
M5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
-1,5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
3300
Max. Negative Test Impulse For 1 Signal
3100
Standard Nominal Flow Rate (Standardised To DIN 1343)
850
EAN
4052568004583
Manufacturer
Festo
