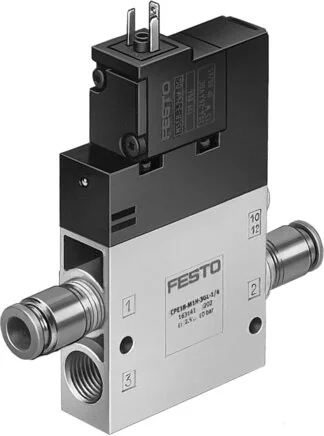

Festo - CPE18-M3H-3OL-QS-8-163792 - Solenoid Valve

SKU: festo-cpe18-m3h-3ol-qs-8-163792

Browse all parts
Festo - CPE18-M3H-3OL-QS-8-163792 - Solenoid Valve

€215.78€184.43 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€215.78

Brand
Festo
Overlap
positive Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Pneumatic spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 open monostable
Build Width (mm)
18
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Certification Body
UL MH19482
Control Air Supply
Internal
Nominal Width (mm)
8
Construction Set Up
Piston pusher
Protection Category
acc. to IEC 60529
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
C shape
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
28
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-8
Pneumatic Connection 2
QS-8
Pneumatic Connection 3
G1/4
Shifting Time Off (ms)
18
Maritime Classification
see Certificate
Valve Space - Labelling
Sign carrier
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,25 to 1
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
230 V AC: 50/60 Hz, Anzugsleistung 3,0 VA, Halteleistung 2,4 VA
Control Air 12 Connection
M5
Exhaust Control Connection 82
M5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
-1,5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
3300
Max. Negative Test Impulse For 1 Signal
3100
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
Standard Nominal Flow Rate (Standardised To DIN 1343)
850
EAN
4052568135485
Manufacturer
Festo
