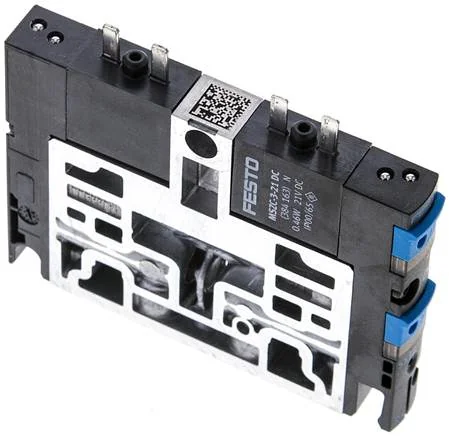

Festo - CPV10-M1H-2X3-GLS-K-M7-553257 - Solenoid Valve

SKU: festo-cpv10-m1h-2x3-gls-k-m7-553257

Browse all parts
Festo - CPV10-M1H-2X3-GLS-K-M7-553257 - Solenoid Valve

€218.91€187.10 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€218.91

Brand
Festo
B-value
0.4
C-value
1,6
Overlap
positive Überdeckung
Reset Mode
Pneumatic spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100% in Verbindung mit Haltestromabsenkung
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
2x3/2 closed monostable
Valve Size (mm)
10
Exhaust Function
Cannot be throttled
Housing Material
Steel
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
4
Construction Set Up
Piston pusher
Protection Category
IP65
Pilot Air Port 12/14
Hunt group
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
17
Control Pressure (MPa)
0,3 to 0,8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Hunt group with pressure separation
Pneumatic Connection 2
M7
Pneumatic Connection 4
M7
Shifting Time Off (ms)
25
Pneumatic Connection 11
Hunt group with pressure separation
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
-0,09 to 1
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 40
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Electrical Power Consumption (W)
0,46
Exhaust Control Connection 82/84
Hunt group
Pneumatic Connection 3/5 Combined
Hunt group
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
1400
Max. Negative Test Impulse For 1 Signal
700
Standard Nominal Flow Rate (Standardised To DIN 1343)
400
EAN
4052568196264
Manufacturer
Festo
