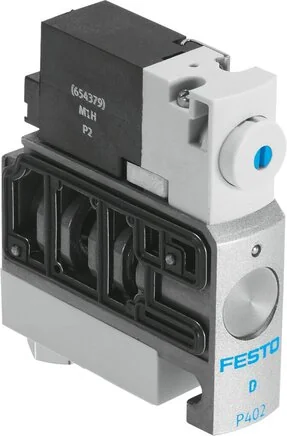

Festo - CPVSC1-M1H-D-P-527573 - Solenoid Valve

SKU: festo-cpvsc1-m1h-d-p-527573

Browse all parts
Festo - CPVSC1-M1H-D-P-527573 - Solenoid Valve

€130.60€111.62 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€130.60

Brand
Festo
Overlap
positive Überdeckung
Reset Mode
Pneumatic spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
2/2 closed monostable
Valve Size (mm)
10
Exhaust Function
Cannot be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
external
Construction Set Up
Piston pusher
Protection Category
IP40
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
Plug
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
10
Control Pressure (MPa)
0,3 to 0,7
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
Hunt group
Pneumatic Connection 2
Connection plate
Pneumatic Connection 4
Connection plate
Shifting Time Off (ms)
10
Operating Pressure (MPa)
-0,09 to 0,7
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
22 V DC: 1,0 W
Corrosion Resistance Class KBK
1 - low corrosion stress
Exhaust Control Connection 82/84
Hunt group
Pneumatic Connection 3/5 Combined
Hunt group
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
400
Max. Negative Test Impulse For 1 Signal
200
Standard Nominal Flow Rate (Standardised To DIN 1343)
150
EAN
4052568162931
Manufacturer
Festo
