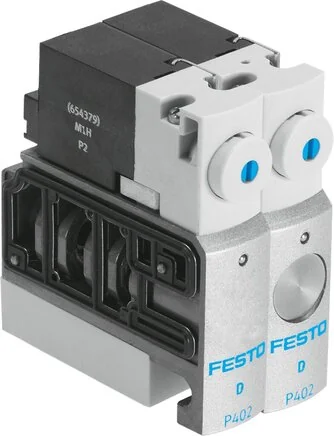

Festo - CPVSC1-M1H-J-P-527571 - Solenoid Valve

SKU: festo-cpvsc1-m1h-j-p-527571

Browse all parts
Festo - CPVSC1-M1H-J-P-527571 - Solenoid Valve

€238.43€203.79 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€238.43

Brand
Festo
Overlap
positive Überdeckung
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
5/2 bistable
Valve Size (mm)
10
Exhaust Function
Cannot be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
external
Shifting Time (ms)
8
Construction Set Up
Piston pusher
Protection Category
IP40
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
Plug
Hand Assist Actuation
tentative
Installation Position
arbitrary
Control Pressure (MPa)
0,3 to 0,7
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
Hunt group
Pneumatic Connection 2
Connection plate
Pneumatic Connection 4
Connection plate
Operating Pressure (MPa)
-0,09 to 0,7
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
22 V DC: 1,0 W
Corrosion Resistance Class KBK
1 - low corrosion stress
Exhaust Control Connection 82/84
Hunt group
Pneumatic Connection 3/5 Combined
Hunt group
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
400
Max. Negative Test Impulse For 1 Signal
200
Standard Nominal Flow Rate (Standardised To DIN 1343)
170
EAN
4052568162924
Manufacturer
Festo
