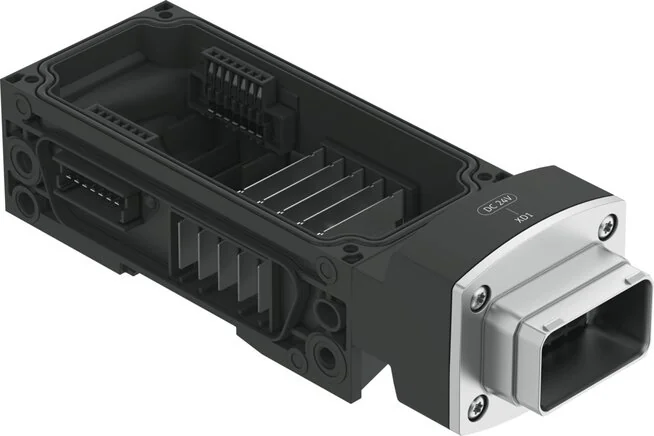

Festo - CPX-AP-A-W-1-PP-5P-8169617 - System Diverting

SKU: festo-cpx-ap-a-w-1-pp-5p-8169617

Festo - CPX-AP-A-W-1-PP-5P-8169617 - System Diverting

€185.40€158.46 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€185.40

Brand
Festo
Material Note
phosphorsäureesterfrei
Fastening Type
mit Durchgangsbohrung für Schraube M6 mit Zubehör
Seals Material
PU foam
Flange Material
Zinc pressure cast, nickel-plated
Screws Material
Nickel-plated steel
Housing Material
PA reinforced
Protection Class
III
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Max. Power Supply
2 x 10 A (externe Sicherung erforderlich)
Relative Humidity
Not condensing
Nominal Current (A)
10
Dimensions W x L x H
50,1 mm x 153 mm x 45,6 mm
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
50,1
Installation Position
beliebig, auf H-Schiene: waagrecht
Max. Setup Height (m)
3.500
Over-voltage Category
II
LABS (PWIS) Conformity
VDMA24364-B2-L
Nominal Altitude Of Use
<= 2000 m ASL (> 79,5 kPa)
Ambient Temperature (°C)
-20 to 50
Bearing Temperature (°C)
-20 to 70
Fire Inspection, Material
UL94 V-0 (Gehäuse)
Power Transmission, Function
Elektronik/Sensoren und Last gehend und Funktionserde
Corrosion Resistance Class KBK
1 - low corrosion stress
Power Transmission, Plug Pattern
997378
Power Transmission, Connection Type
Plug
Nominal Operating Voltage DC Of Load (V)
24
Power Transmission, Number Of Pins/wires
5
Power Transmission, Connection Technology
Push-Pull nach IEC 61076-3-126
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Potential Separation Between The Supply Voltages Electronics/sensor Technology And Load/valves
yes
EAN
4052568609733
Manufacturer
Festo
