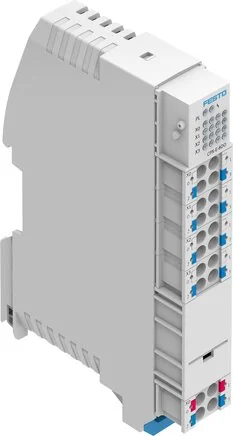

Fastening Type
With Slot rail
Module Parameter
Diagnosis Short circuit output, Diagnosis under-voltage load supply, Behaviour after short circuit/overload
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Channel Parameter
Forces channel x
Diagnosis Via Bus
Module error, Short circuit/overload output, under-voltage load supply
Diagnosis Via LED
Error per channel, Error per module, Status per channel
Relative Humidity
95 %, Not condensing
Dimensions W x L x H
18.9 mm x 76.6 mm x 124.3 mm
Fuse (Short Circuit)
Internal electronic fuse Per channel
Material Information
LABS containing materials included, RoHs compliant
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Switching Logic Outputs
PNP (Positive switching)
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Characteristic Curves Outputs
to IEC 61131-2 type 0.5
Corrosion Resistance Class KBK
0 - No corrosion stressing
Voltage Supply, Connection Type
Multi tube holder
Max. Address Volume Outputs (Byte)
1
Voltage Supply, Connection Technology
Spring tension clamp
Voltage Supply, Number Of Poles/wires
4
Permitted Voltage Oscillations Outputs
± 25 %
Potential Separation Channel - Channel
no
Electrical Connection: Outlet, Function
Digital output
Nominal Operating Voltage DC Outputs (V)
24
Potential Separation Channel - Internal Bus
yes
Protect Against Direct And Indirect Contact
Funktionskleinspannung mit sicherer Trennung (PELV)
Intrinsic Power Input Operating Voltage Load
Type 34 mA
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Electrical Connection: Outlet, Connection Type
4x multi tube holder
Max. Cumulative Current Outputs Per Module (A)
4
Voltage Supply, Conductor Cross-section (mm²)
0.2 to 1.5
Electrical Connection: Outlet, Connection Technology
Spring tension clamp
Electrical Connection: Outlet, Number Of Pins / Wires
4
Voltage Supply, Information On Conductor Cross-section
0.2 - 2.5 mm² for flexible conductor without wire end sleeve
Electrical Connection: Outlet, Conductor Cross-section (mm²)
0.2 to 1.5
Electrical Connection: Outlet, Information On Conductor Cross-section
0.2 - 2.5 mm² for flexible conductor without wire end sleeve
