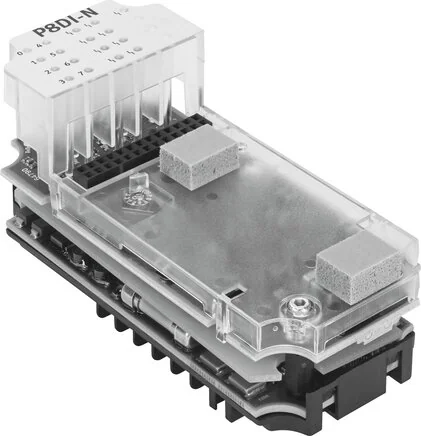

Festo - CPX-P-8DE-N-565933 - Input Module

SKU: festo-cpx-p-8de-n-565933

Festo - CPX-P-8DE-N-565933 - Input Module

€604.61€516.76 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€604.61

Brand
Festo
Diagnosis
Parametrierfehler, Drahtbruch pro Kanal, Grenzwertverletzung pro Kanal, Kurzschluss pro Kanal
LED Displays
1 Sammeldiagnose, 8 Kanaldiagnose, 8 Kanalstatus
Switch Level
acc. to EN 60947-5-6
Fastening Type
on linking block CPX-M-GE..
Parameterising
Datenformat, Eingangsentprellzeit pro Kanal, Eingangsfunktion pro Kanal, Ersatzwert im Diagnosefall pro Kanal, oberer Grenzwert pro Kanal, Signalverlängerungszeit pro Kanal, Torzeit pro Kanal, Überwachung Grenzwerte pro Kanal, Überwachung Kurzschluss pro Kanal, Überwachung Drahtbruch/Kanal, Überwachung Parameter, unterer Grenzwert pro Kanal, Zählerkonfiguration pro Kanal
Quantity Inputs
8
Residual Ripple
0,4 Vss
Housing Material
PC, PA reinforced
Operating Element
DIL switch
Relative Humidity
95 %, Not condensing
Protection Category
Depends on connection block
Additional Functions
Frequency measurement, Counter function
Dimensions W x L x H
50 mm x 107 mm x 70 mm, (Incl. linking block and connectors)
Fuse (Short Circuit)
Per channel
Material Information
RoHs compliant
Max. Line Length (m)
200
Pitch Dimension (mm)
50
Input Debouncing Time
3 ms (0 ms, 10 ms, 20 ms parameterisable)
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Reverse Polarity Protection
for operating voltage
Characteristic Curves Inputs
acc. to EN 60947-5-6
Power Blackout Bridging (ms)
20
Permitted Voltage Oscillations
± 25 %
Nominal Operating Voltage DC (V)
24
Potential Separation Channel - Channel
no
Intrinsic Power Input At Operating Voltage
Type 75 mA
Potential Separation Channel - Internal Bus
yes
EAN
4052568213398
Manufacturer
Festo
