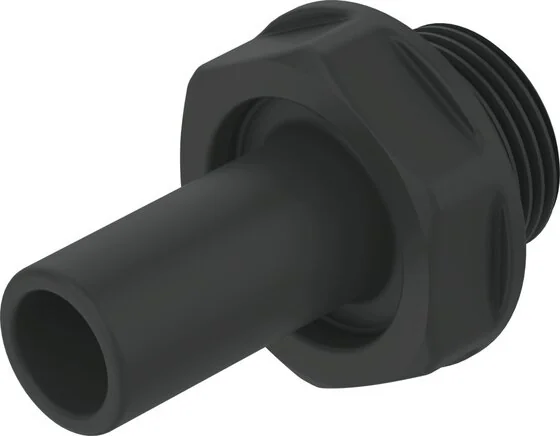

Festo - CQ-3/8-12H-177705 - Push-In Fitting

SKU: festo-cq-3-8-12h-177705

Festo - CQ-3/8-12H-177705 - Push-In Fitting

€6.82€5.83 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€6.82

Brand
Festo
Packing Size
1
Material Note
RoHs compliant
Sleeve Material
POM
Housing Material
POM
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
gasket
Food Compatibility
See expanded material information
Nominal Width (mm)
8,65
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
Male thread G3/8
Pneumatic Connection 2
Plug sleeve CQ-12
Ambient Temperature (°C)
-25 to 70
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Nominal Tightening Torque (Nm)
2,5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Tolerance To Nominal Tightening Torque
± 10 %
Temperature Depending Operating Pressure (bar)
-0.95 to 15
Operating Pressure Complete Temperature Range (bar)
-0.95 to 7
EAN
4052568038540
Manufacturer
Festo
