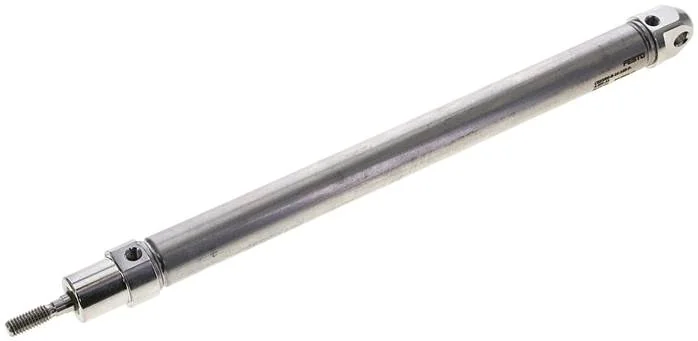

Festo - CRDSNU-B-16-160-P-A-MG-A1-8073766 - Standard Cylinder

SKU: festo-crdsnu-b-16-160-p-a-mg-a1-8073766

Browse all parts
Festo - CRDSNU-B-16-160-P-A-MG-A1-8073766 - Standard Cylinder

€145.04€123.97 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€145.04

Brand
Festo
Dampening
P: Elastic silencer rings / plates double-sided
Stroke (mm)
160
Cover Material
High-alloyed stainless steels
Fastening Type
With Accessories
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
ISO 6432
Food Compatibility
See expanded material information
Position Detection
For proximity switch
Construction Set Up
Piston, piston rod, cylinder tube
Material Information
RoHs compliant
High-alloyed stainless steels
Piston Diameter (mm)
16
Pneumatic Connection
M5
Installation Position
arbitrary
Cylinder Tube Material
High-alloyed stainless steels
Principle Of Operation
double acting
Maritime Classification
see Certificate
Operating Pressure (bar)
1 to 10
Base Weight At 0 mm Stroke (g)
130
Theoretical Force At 6 bar, Flow (N)
121
Supplement Moved Mass Per 10 mm Stroke (g)
2,2
Theoretical Force At 6 bar, Return Flow (N)
104
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
4 - particularly severe corrosion stress
EAN
4052568298067
Manufacturer
Festo
