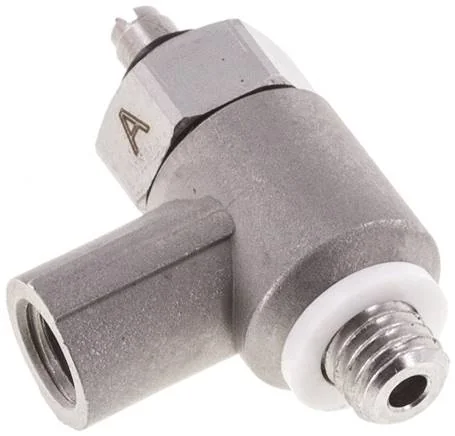

Festo - CRGRLA-M5-B-161403 - Throttle Check Valve

SKU: festo-crgrla-m5-b-161403

Browse all parts
Festo - CRGRLA-M5-B-161403 - Throttle Check Valve

€93.55€79.96 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€93.55

Brand
Festo
Material Note
RoHs compliant
Actuation Type
Manually
Can Be Rotated
360 deg/no permanent tilt permitted
Fastening Type
Screwable
Seals Material
PVC
Valve Function
Throttle blowback function
Setting Element
slotted screw
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Food Compatibility
See expanded material information
Nominal Width (mm)
2
Banjo Bolt Material
High-alloyed steel
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
M5
Pneumatic Connection 2
M5
Maritime Classification
see Certificate
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
0,02 to 1
Ambient Temperature (°C)
-20 to 80
Bearing Temperature (°C)
40
Regulation Screw Material
High-alloyed stainless steels
Swivel Connection Material
High-alloyed stainless steels
Max. Tightening Torque (Nm)
1,5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Normal Nominal Flow In One-way Flow Control
95
Normal Nominal Flow In Check Valve Direction
77 to 95
Permitted Actuation Moment Regulation Disc (Nm)
0,2
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
140 to 150
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
165
EAN
4052568071929
Manufacturer
Festo
