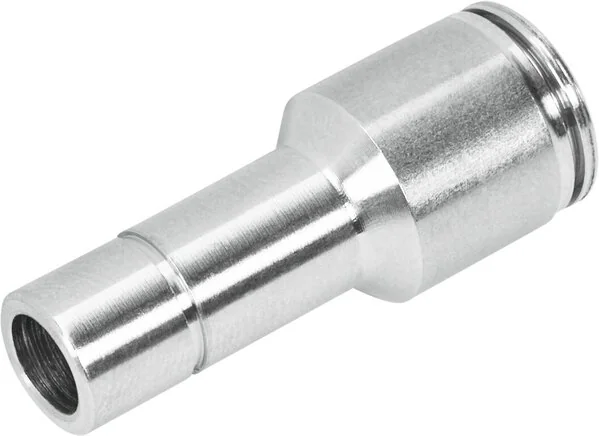

Festo - CRQS-3/8H-5/16-U-565358 - Push-In Fitting

SKU: festo-crqs-3-8h-5-16-u-565358

Festo - CRQS-3/8H-5/16-U-565358 - Push-In Fitting

€39.18€33.49 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€39.18

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
1
Material Note
RoHs compliant
Nominal Width
6,502
Sleeve Colour
silver
Sleeve Material
High-alloyed stainless steels
Housing Material
High-alloyed stainless steels
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Usable Pipelines
PFAN
Food Compatibility
See expanded material information
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
"Steckhülse Ø 3/8"""
Pneumatic Connection 2
"für Schlauch Außen-Ø 5/16"""
Hose Plug-in Depth (mm)
16
Ambient Temperature (°C)
-20 to 150
Tube Seal, Hose Seal Material
FPM
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,4
EAN
4052568367817
Manufacturer
Festo
