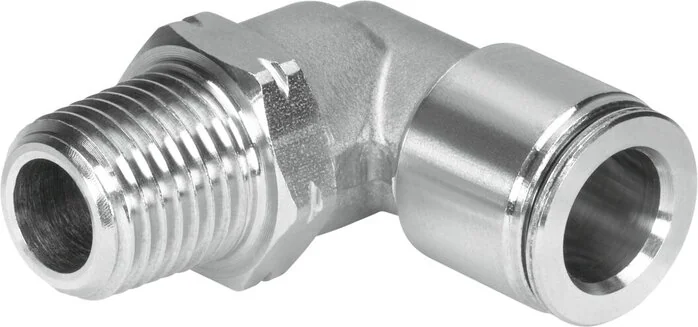

Festo - CRQSL-3/8-1/2-U-565332 - L Fitting

SKU: festo-crqsl-3-8-1-2-u-565332

Festo - CRQSL-3/8-1/2-U-565332 - L Fitting

€134.94€115.33 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€134.94

Brand
Festo
Size
Standard
Design
L-Form
Packing Size
1
Material Note
RoHs compliant
Nominal Width
10,49
Sleeve Colour
silver
Fastening Type
Außensechskant 13/16
Sleeve Material
High-alloyed stainless steels
Housing Material
High-alloyed stainless steels
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Usable Pipelines
PFAN
Food Compatibility
See expanded material information
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
Außengewinde 3/8 NPTF
Pneumatic Connection 2
"für Schlauch Außen-Ø 1/2"""
Hose Plug-in Depth (mm)
19,5
Ambient Temperature (°C)
-20 to 150
Tube Seal, Hose Seal Material
FPM
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,4
EAN
4052568367558
Manufacturer
Festo
