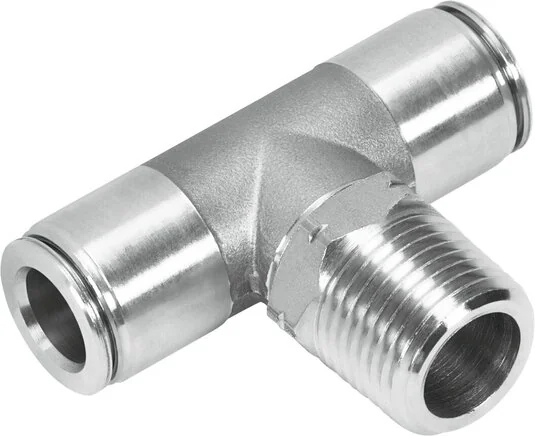

Festo - CRQST-1/4-1/4-U-565336 - T Fitting

SKU: festo-crqst-1-4-1-4-u-565336

Festo - CRQST-1/4-1/4-U-565336 - T Fitting

€89.54€76.53 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€89.54

Brand
Festo
Size
Standard
Design
T-shape
Packing Size
1
Material Note
RoHs compliant
Nominal Width
5,512
Sleeve Colour
silver
Fastening Type
Außensechskant 35/64
Sleeve Material
High-alloyed stainless steels
Housing Material
High-alloyed stainless steels
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Usable Pipelines
PFAN
Food Compatibility
See expanded material information
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
Außengewinde 1/4 NPTF
Pneumatic Connection 2
"für Schlauch Außen-Ø 1/4"""
Hose Plug-in Depth (mm)
16
Ambient Temperature (°C)
-20 to 150
Tube Seal, Hose Seal Material
FPM
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,4
EAN
4052568367596
Manufacturer
Festo
