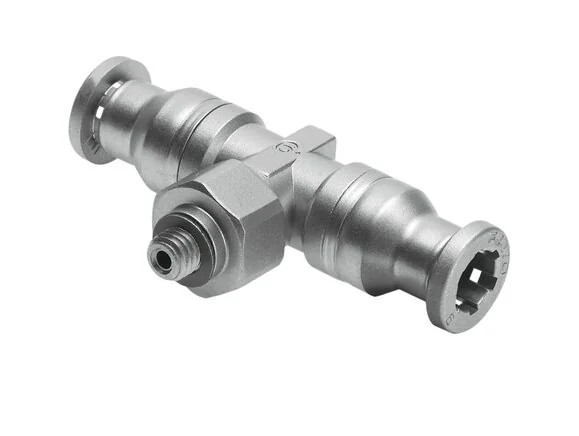

Festo - CRQST-M5-4-164200 - T Fitting

SKU: festo-crqst-m5-4-164200

Festo - CRQST-M5-4-164200 - T Fitting

€90.15€77.05 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€90.15

Brand
Festo
Size
Standard
Design
T-shape
Packing Size
1
Material Note
RoHs compliant
Sleeve Colour
silver
Stud Material
High-alloyed stainless steels
Fastening Type
Außensechskant SW10
Sleeve Material
High-alloyed stainless steels
Housing Material
High-alloyed stainless steels
Operating Medium
Wasser (flüssig, eisfrei)
Usable Pipelines
PFAN
Number Of Outlets
2
Seal Type On Stud
gasket
Food Compatibility
See expanded material information
Nominal Width (mm)
2
Construction Set Up
Push-pull principle
Thrust Ring Material
High-alloyed stainless steels
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Number Of Supply Lines
1
Pneumatic Connection 1
Male thread M5
Pneumatic Connection 2
für Schlauch Außen-Ø 4 mm
Hose Plug-in Depth (mm)
18
Thread Sealing Material
High-alloyed stainless steels
Ambient Temperature (°C)
-15 to 120
Tube Seal, Hose Seal Material
FPM
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Nominal Tightening Torque (Nm)
1,33
Information About Operating Pressure
Wasser: max. 0,6 MPa bei max. 50 °C
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568073206
Manufacturer
Festo
