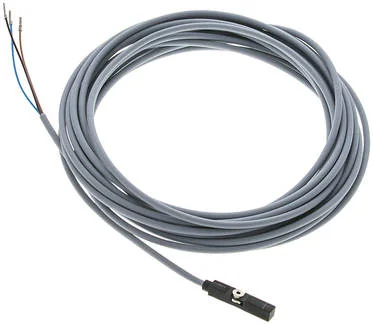

Festo - CRSMT-8M-PS-24V-K-5,0-OE-EX2-574380 - Proximity Switch

SKU: festo-crsmt-8m-ps-24v-k-5-0-oe-ex2-574380

Festo - CRSMT-8M-PS-24V-K-5,0-OE-EX2-574380 - Proximity Switch

€77.49€66.23 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€77.49

Brand
Festo
Design
For T-slot
Wire Ends
Wire end sleeve
Permission
RCM mark
Torque (Nm)
0,1 to 0,6
Material Note
halogenfrei
Control Output
PNP
Fastening Type
Insertable from above into the slot
Housing Colour
black
Line Properties
Standard/ energiekettentauglich
Residual Ripple
10%
Cable Length (m)
5
Housing Material
High-alloyed stainless steels
Special Features
säurebeständig
Voltage Drop (V)
1,5
ATEX Gas Category
II 3G
Based On Standard
EN 60947-5-2
ATEX Dust Category
II 3D
Food Compatibility
See expanded material information
Measured Parameter
Position
Overload Resistant
yes
Repeatability (mm)
0,2
Cable Shield Colour
Grey
Protection Category
IP69K
Switch On Time (ms)
1
Switch Off Time (ms)
1
Test Conditions Line
Energiekette: > 5 Millionen Zyklen, Biegeradius 75 mm
Cable Sleeve Material
TPE-O
Installation Position
arbitrary
Measurement Principle
Magnetoresistive
Residual Current (mA)
0,05
Ex Ambient Temperature
-40°C <= Ta <= +85°C
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
100
Short Circuit Resistance
yes
Ambient Temperature (°C)
-40 to 85
Minimum Load Current (mA)
0
Functional Reserve Display
LED orange
Insulation Sleeve Material
PP
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Max. Tightening Torque (Nm)
0,6
Reverse Polarity Protection
for all electrical connections
Inductive Protection Circuit
adjusted to MZ, MY, ME coils
Max. Switching Frequency (Hz)
180
Max. Switching Capacity DC (W)
2,8
Operating Voltage Range DC (V)
5 to 30
Rated Operating Voltage DC (V)
24
Ex Ignition Protection Type Gas
Ex ec IIC T4 Gc X
Ex Ignition Protection Type Dust
Ex tc IIIC T120°C Dc X
Noise Immunity To Magnetic Fields
bauartbedingt unempfindlich gegen Permanent-Magnetfelder < Bon
Electrical Connection 1, Connection Type
cable
Ex Protection Approval Outside Of The EU
EPL Gc (GB)
Max. Output Current In Fastening Sets (mA)
100
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Max. Switching Capacity DC In Fastening Sets (W)
2,8
Ambient Temperature For Moving Cable Placements (°C)
-20 to 85
EAN
4052568103316
Manufacturer
Festo
