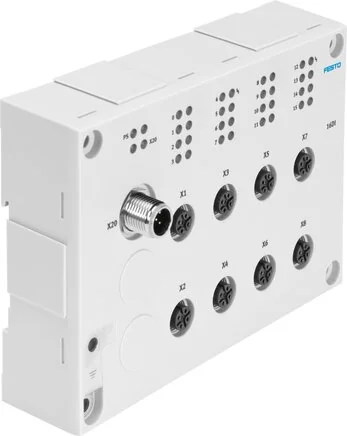

Festo - CTSL-D-16E-M12-5-1387359 - Input Module

SKU: festo-ctsl-d-16e-m12-5-1387359

Festo - CTSL-D-16E-M12-5-1387359 - Input Module

€406.79€347.68 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€406.79

Brand
Festo
Report
I-port, IO-Link
KC-mark
KC-EMV
Baud Rate
38,4 kBit/s, 230,4 kBit/s
Permission
RCM mark, c UL us - Listed (OL)
Fastening Type
With throughway bores, With Slot rail, Selectively:
IO-Link, Report
Device V 1.0
Certification Body
UL E239998
IO-Link, Port Type
B
IO-Link, Port Class
RoHs compliant
Protection Category
IP67, IP65
Dimensions W x L x H
143 mm x 103 mm x 32 mm
Fuse (Short Circuit)
Internal electronic fuse Per group
Material Information
to EU EMC directive
Electrical Connection
M12, 5 pin, 8x socket
Input Debouncing Time
3 ms (0.5 ms, 10 ms, 20 ms parameterisable)
Max. Number Of Inputs
16
Switching Logic Inputs
PNP (Positive switching)
IO-Link, Number Of Ports
1
LED Display Bus Specific
X20: I-port/ IO link
Bearing Temperature (°C)
-20 to 70
IO-Link, Protocol Version
PA reinforced
IO-Link, Communication Mode
COM2 (38,4 kBaud), COM3 (230,4 kBaud)
PA reinforced
IO-Link, Minimum Cycle Time
Device 3.2 ms
Reverse Polarity Protection
for operating voltage
Characteristic Curves Inputs
IEC1131-T2
Corrosion Resistance Class KBK
2 - moderate corrosion stress
IO-Link, Connection Technology
Device 5 pin
1 PS Betriebsspannung elektrisch, 16 Kanalstatus, 2 Gruppendiagnose
IO-Link, Process Data Width IN
2 Bytes
Operating Voltage Range DC (V)
18 to 30
Potential Separation Channel - Channel
no
Max. Cumulative Currents Per Module (A)
1,2
UKCA Marking (See Declaration Of Conformity)
Signal 0: <= 5 V, Signal 1: >= 11 V
Power Input In Nominal Operating Voltage Logic (mA)
<= 35 mA
EAN
4052568232542
Manufacturer
Festo
