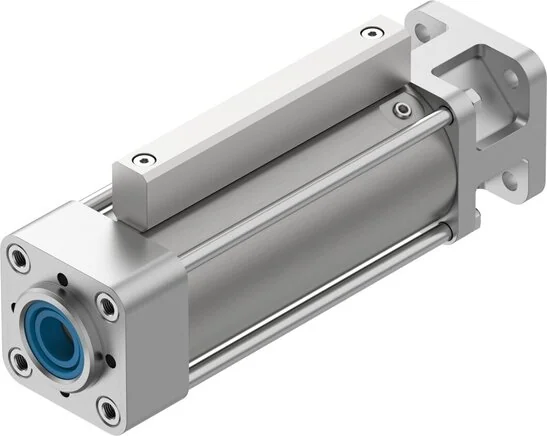

Festo - DACS-16-A-S-8072770 - Holding Brake

SKU: festo-dacs-16-a-s-8072770

Festo - DACS-16-A-S-8072770 - Holding Brake

€1,438.95€1,229.87 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,438.95

Brand
Festo
Permission
TÜV
Material Note
RoHs compliant
Fastening Type
With Accessories
Seals Material
TPE-U(PU)
Piston Material
Steel
Safety Function
Halten und Anhalten einer Bewegung
Spring Material
High-alloyed steel
Housing Material
Steel
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Certification Body
TÜV CA 697
Position Detection
For proximity switch
Clamp Jaws Material
Werkzeugstahl
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Performance Level (PL)
Anhalten, Halten, Blockieren der Bewegung / Kategorie 1, Performance Level c
Operating Pressure (MPa)
0,38 to 0,8
Static Holding Force (N)
1.350
Ambient Temperature (°C)
-20 to 80
Min. Release Pressure (bar)
3,8
Corrosion Resistance Class KBK
1 - low corrosion stress
Round Stock To Be Clamped (mm)
16
Release Connection Of Clamping Unit
G1/8
Max. Permissible Test Pressure (bar)
8
Terminal Type With Effective Direction
Klemmung durch Feder, lösen durch Druckluft
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für Maschinen
CE Certificate (See Declaration Of Conformity)
to EU machinery directive
EAN
4052568454548
Manufacturer
Festo
