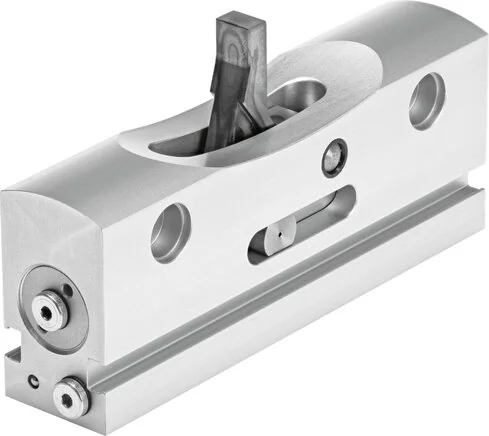

Festo - DADM-EP-G6-16-1478121 - Intermediate Position Module

SKU: festo-dadm-ep-g6-16-1478121

Browse all parts
Festo - DADM-EP-G6-16-1478121 - Intermediate Position Module

€612.87€523.82 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€612.87

Brand
Festo
Size
16
Material Note
RoHs compliant
Fastening Type
With Throughway bore and centring sleeve
Lever Material
High-alloyed stainless steels
Seals Material
PU
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Position Detection
For proximity switch
Repeatability (mm)
±0.02
Construction Set Up
Force controlled movement cycle
Pneumatic Connection
M5
Installation Position
arbitrary
Max. Impact Force (N)
1.100
Max. Swivel Time (ms)
150
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Max. Impact Speed (m/s)
0,8
Operating Pressure (bar)
3 to 6
Ambient Temperature (°C)
0 to 60
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568263515
Manufacturer
Festo
