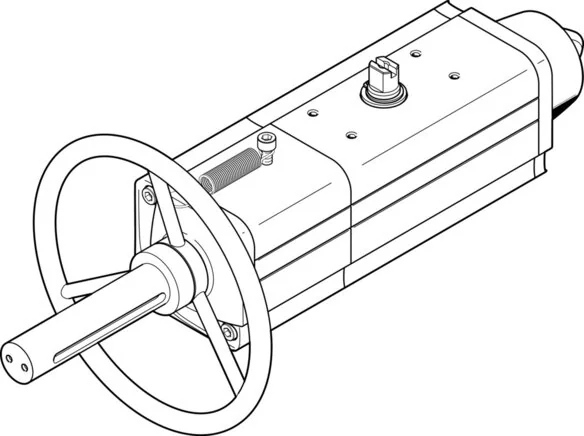

Festo - DAPS-0053-090-RS4-F0507-MW-8005029 - Swivel Drive

SKU: festo-daps-0053-090-rs4-f0507-mw-8005029

Festo - DAPS-0053-090-RS4-F0507-MW-8005029 - Swivel Drive

€1,273.62€1,088.56 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,273.62

Brand
Festo
Dampening
No dampening
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Seals Material
PUR
Shaft Material
High-alloyed steel
Screws Material
High-alloyed steel
Spring Strength
4
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shaft Connection
T17
ATEX Gas Category
II 2G
Closing Direction
Right closing
Swivel Angle (°)
92
ATEX Dust Category
II 2D
Certification Body
TÜV Nord 212170801
Position Detection
without
Construction Set Up
Joch kinematics
Pneumatic Connection
G1/8
Installation Position
arbitrary
Material Number Shaft
14.305
Ex Ambient Temperature
-20°C <= Ta <= +60°C
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
single action
Flange Drilling Pattern
F07
Operating Pressure (MPa)
0,56 to 0,84
Ambient Temperature (°C)
-20 to 80
Position Drive Dimensions
53
Shaft Connection Depth (mm)
19,3
Safety Integrity Level (SIL)
bis SIL 2 Low Demand mode
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Standard Connection To Fitting
ISO 5211
Ex Ignition Protection Type Gas
Ex h IIC T6...T3 Gb X
Ex Ignition Protection Type Dust
Ex h IIIC T85°C...T200°C Db X
Nominal Operating Pressure (MPa)
0,56
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Valve Connection Corresponds To Standard
VDI/VDE 3845 (NAMUR)
UKCA Marking (See Declaration Of Conformity)
nach UK EX Vorschriften
Connection Pressure For Spring Strength (MPa)
0,56
CE Certificate (See Declaration Of Conformity)
to EU EX protection directive (ATEX)
Spring Force Torque At A Swivel Angle 0° (Nm)
35
Spring Return Torque At 90° Swivel Angle (Nm)
53
Spring Force Torque At A Swivel Angle 50° (Nm)
26,0
Information About The Adjustment Range Of The End Positions
Selectively one end position is adjustable
Rotary Torque For Nominal Operating Pressure And 0° Pivot Angle (Nm)
53
Rotary Torque For Nominal Operating Pressure And 50° Pivot Angle (Nm)
26,0
Rotary Torque For Nominal Operating Pressure And 90° Pivot Angle (Nm)
35
Air Consumption At 0.6 MPa (6 bar, 87 psi) Per Cycle 0°-nominal Swivel Angle-0° (l)
2,1
EAN
4052568256784
Manufacturer
Festo
