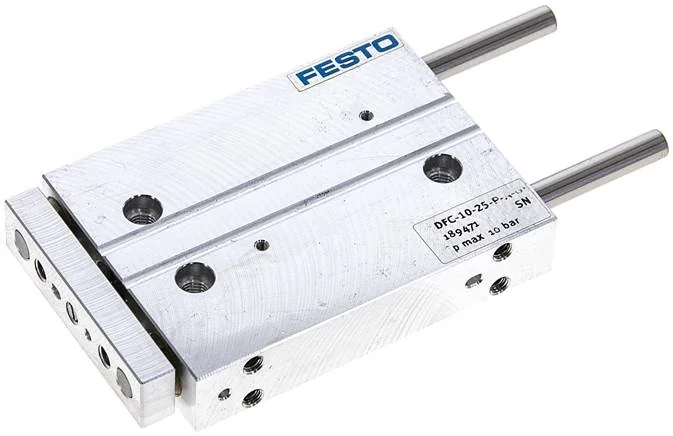

Festo - DFC-10-25-P-A-GF-189471 - Mini Guide Cylinder

SKU: festo-dfc-10-25-p-a-gf-189471

Festo - DFC-10-25-P-A-GF-189471 - Mini Guide Cylinder

€547.43€467.89 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€547.43

Brand
Festo
Guide
sliding guide
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
25
Cover Material
Aluminium wrought alloy
Piston Ø (mm)
10
Seals Material
NBR
Moving Mass (g)
27,2
Housing Material
Aluminium wrought alloy
Max. Speed (m/s)
1
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Guide
Max. Torque Mx (Nm)
0,4
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-5 to 60
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Moving Mass At 0 mm Stroke (g)
27,2
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
0,05
Supplement Moved Mass Per 10 mm Stroke (g)
7,2
Distance From Centre Of Gravity Of Load To Yoke Plate Xs (mm)
15
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
35
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
47
Max. Usable Load Depending On The Stroke At A Defined Distance Xs (N)
12,2
EAN
4052568150167
Manufacturer
Festo

Be the first to write a review!

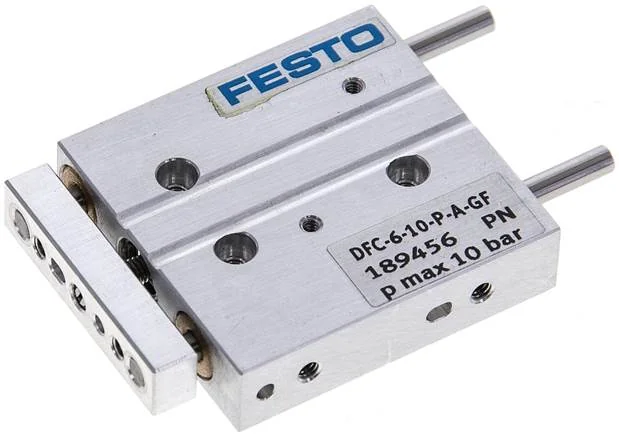

Similar items you might like
