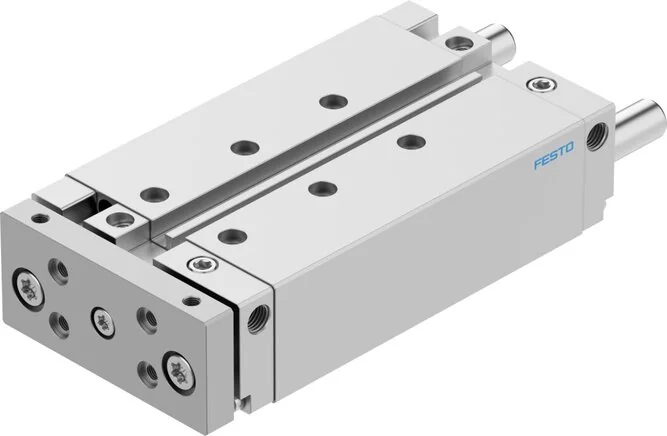

Festo - DFM-25-100-B-PPV-A-GF-578876 - Guide Cylinder

SKU: festo-dfm-25-100-b-ppv-a-gf-578876

Browse all parts
Festo - DFM-25-100-B-PPV-A-GF-578876 - Guide Cylinder

€643.56€550.05 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€643.56

Brand
Festo
Guide
sliding guide
Dampening
pneumatische Dämpfung beidseitig einstellbar
Stroke (mm)
100
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Piston Ø (mm)
25
Seals Material
NBR
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Guide
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
G1/8
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Operating Pressure (MPa)
0,15 to 1
Ambient Temperature (°C)
80
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
0,3
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
247
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
295
EAN
4052568385552
Manufacturer
Festo
