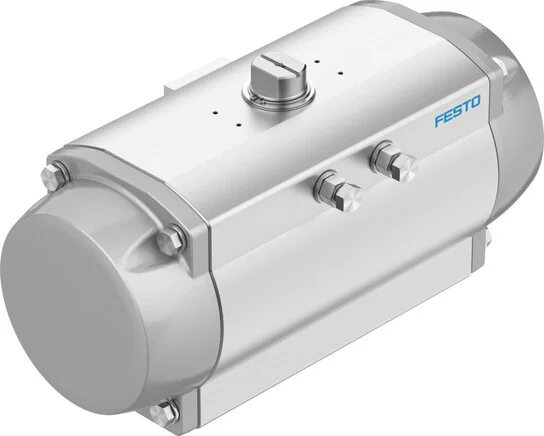

Material Note
RoHs compliant
Cover Material
Aluminium-Druckguss, beschichtet
Shaft Material
Nickel-plated steel
Piston Material
Aluminium die casting
Safety Function
Die Sicherheitsfunktion besteht darin, dass der Antrieb bei ausgeschalteter Druckluft und entlüfteter Federkammer in die definierte Sicherheitsschaltstellung schaltet. Diese Schaltbewegung wird durch die Federkraft des Federpakets realisiert.
Screws Material
High-alloyed stainless steels
Spring Material
spring steel
Housing Material
Anodised aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Closing Direction
Right closing
Certification Body
TÜV Rheinland 968/V 1106.01/2023
Construction Set Up
Toothed rack/pinion
Burst Pressure (bar)
24,00
Pneumatic Connection
1/4 NPT
Installation Position
arbitrary
Ex Ambient Temperature
-20°C <= Ta <= +80°C
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
single action
Flange Drilling Pattern
F14
Maritime Classification
see Certificate
Operating Pressure (MPa)
0,2 to 0,8
Ambient Temperature (°C)
-20 to 80
Bearing Temperature (°C)
-20 to 60
Connection Plate Material
Aluminium-Knetlegierung, eloxiert
Position Drive Dimensions
1200
Shaft Connection Depth (mm)
38
Safety Integrity Level (SIL)
bis SIL 1 High Demand mode
Standard Connection To Fitting
ISO 5211
Ex Ignition Protection Type Gas
Ex h IIC T4 Gb X
Ex Ignition Protection Type Dust
Ex h IIIC T105°C Db X
Nominal Operating Pressure (MPa)
0,6
Device Type According To VDMA 66413
Sicherheitsbauteil
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Ex Protection Approval Outside Of The EU
EPL Gb (GB)
Valve Connection Corresponds To Standard
VDI/VDE 3845 (NAMUR)
Adjustable Range End Position At 0° (°)
-5 to 5
UKCA Marking (See Declaration Of Conformity)
nach UK EX Vorschriften
CE Certificate (See Declaration Of Conformity)
to EU EX protection directive (ATEX)
Spring Force Torque At A Swivel Angle 0° (Nm)
479,4
Spring Return Torque At 90° Swivel Angle (Nm)
798,6
End-position Adjustment Range At Nominal Swivel Angle (°)
-5 to 5
Certified For Safety Function To ISO 13849 And IEC 61508 (SIL)
bis SIL 3 in einer redundanten Architektur
Rotary Torque For Nominal Operating Pressure And 0° Pivot Angle (Nm)
796,3
Rotary Torque For Nominal Operating Pressure And 90° Pivot Angle (Nm)
477,2
Connection Point For Positioner And Position Sensor Conforms To Standard
VDI/VDE 3845 size AA 3
Air Consumption At 0.6 MPa (6 bar, 87 psi) Per Cycle 0°-nominal Swivel Angle-0° (l)
43,5
