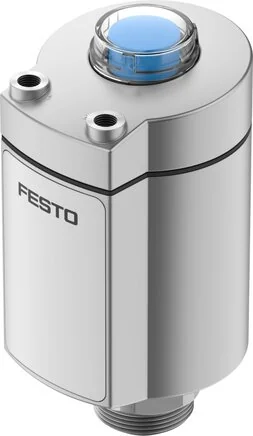

Festo - DFPK-75-20-S-V4-8083965 - Piston Drive

SKU: festo-dfpk-75-20-s-v4-8083965

Browse all parts
Festo - DFPK-75-20-S-V4-8083965 - Piston Drive

€593.69€507.43 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€593.69

Brand
Festo
Stroke (mm)
20
Material Note
RoHs compliant
Cover Material
Cast stainless steel
Seals Material
FPM
Control Function
Durch Federkraft geöffnet, NO
Housing Material
Cast stainless steel
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
ATEX Gas Category
II 2G
ATEX Dust Category
II 2D
Position Detection
With Mechanical display
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP69K
Pneumatic Connection
female thread G1/8
Installation Position
arbitrary
Ex Ambient Temperature
0°C <= Ta <= +60°C
LABS (PWIS) Conformity
VDMA24364-Zone III
Material Number Housing
14.408
Operating Pressure (MPa)
0.5 to 1
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
-10 to 60
Position Drive Dimensions
75
Ex Ignition Protection Type Gas
Ex h IIC T6...T4 Gb
Ex Ignition Protection Type Dust
Ex h IIIC T80°C...T120°C Db
Ex Protection Approval Outside Of The EU
EPL Gb (GB)
UKCA Marking (See Declaration Of Conformity)
nach UK EX Vorschriften
CE Certificate (See Declaration Of Conformity)
to EU EX protection directive (ATEX)
EAN
4052568457808
Manufacturer
Festo
