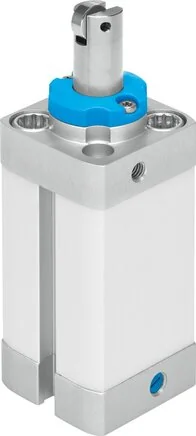

Festo - DFSP-Q-20-10-PR-PA-576093 - Stopper Cylinder

SKU: festo-dfsp-q-20-10-pr-pa-576093

Browse all parts
Festo - DFSP-Q-20-10-PR-PA-576093 - Stopper Cylinder

€166.69€142.47 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€166.69

Brand
Festo
Variants
non-rotating piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
10
Material Note
RoHs compliant
Cover Material
eloxiert
Fastening Type
With Accessories
Piston Ø (mm)
20
Seals Material
TPE-U(PU)
Roller Material
Zinc plated steel
Impact Force (N)
840
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
non-rotating
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M5
Installation Position
arbitrary
Cylinder Tube Material
gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material Collar Screws
Zinc plated steel
Principle Of Operation
ziehend
Anti-twist Lock / Guide
Flattened piston rod
Operating Pressure (MPa)
0,16 to 1
Ambient Temperature (°C)
-10 to 80
Max. Cycle Frequency (Hz)
5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Permitted Shear Force During Switching Process (N)
200
EAN
4052568224578
Manufacturer
Festo
