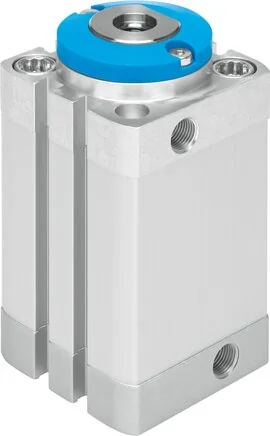

Festo - DFSP-Q-50-25-DF-PA-576163 - Stopper Cylinder

SKU: festo-dfsp-q-50-25-df-pa-576163

Browse all parts
Festo - DFSP-Q-50-25-DF-PA-576163 - Stopper Cylinder

€305.43€261.05 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€305.43

Brand
Festo
Variants
non-rotating piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
25
Material Note
RoHs compliant
Cover Material
eloxiert
Fastening Type
With Accessories
Piston Rod End
Female thread
Piston Ø (mm)
50
Seals Material
TPE-U(PU)
Roller Material
Zinc plated steel
Impact Force (N)
6.280
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M8
Position Detection
For proximity switch
Construction Set Up
non-rotating
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
G1/8
Installation Position
arbitrary
Cylinder Tube Material
gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Material Collar Screws
Zinc plated steel
Principle Of Operation
double acting
Anti-twist Lock / Guide
Flattened piston rod
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
80
Max. Cycle Frequency (Hz)
5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Permitted Shear Force During Switching Process (N)
1.570
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
EAN
4052568225278
Manufacturer
Festo
