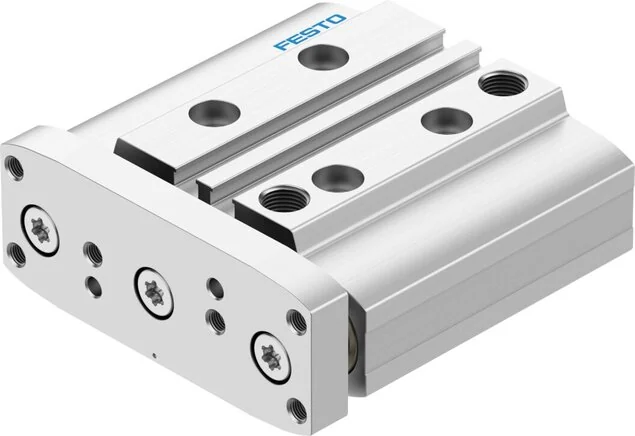

Festo - DGRC-GF-25-20-PA-8218205 - Guide Cylinder

SKU: festo-dgrc-gf-25-20-pa-8218205

Browse all parts
Festo - DGRC-GF-25-20-PA-8218205 - Guide Cylinder

€292.66€250.14 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€292.66

Brand
Festo
Guide
sliding guide
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
20
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Piston Ø (mm)
25
Seals Material
NBR
Moving Mass (g)
247,5
Housing Material
Aluminium-Knetlegierung, eloxiert
Max. Speed (m/s)
0,8
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Force Fy (N)
663
Max. Force Fz (N)
663
End Plate Material
Aluminium-Knetlegierung, eloxiert
Material Guide Rod
High-alloyed steel
Position Detection
For proximity switch
Construction Set Up
Guide
Max. Torque Mx (Nm)
21,22
Max. Torque My (Nm)
9,28
Max. Torque Mz (Nm)
9,28
Piston Rod Material
High-alloyed steel
Torsional Play (°)
0,045
Pneumatic Connection
G1/8
Installation Position
arbitrary
Dynamic Seals Material
TPE-U(PU)
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Anti-twist Lock / Guide
Guide rod with yoke
Max. Force Fy Static (N)
663,0
Max. Force Fz Static (N)
663,0
Operating Pressure (MPa)
0,15 to 1
Ambient Temperature (°C)
-10 to 60
Max. Torque Mx Static (Nm)
21,22
Max. Torque My Static (Nm)
9,28
Max. Torque Mz Static (Nm)
9,28
Operating Mode, Drive Unit
Joch
Base Weight At 0 mm Stroke (g)
229,3
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
0,3
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Max. Permitted Moment Load Mx Depending On Stroke (Nm)
4,74
Centre Of Mass Of The Moved Mass Depending On Stroke (mm)
23,4
Distance From Centre Of Gravity Of Load To Yoke Plate Xs (mm)
50
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
247
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
295
Max. Usable Load Depending On The Stroke At A Defined Distance Xs (N)
82
EAN
4052568771041
Manufacturer
Festo
