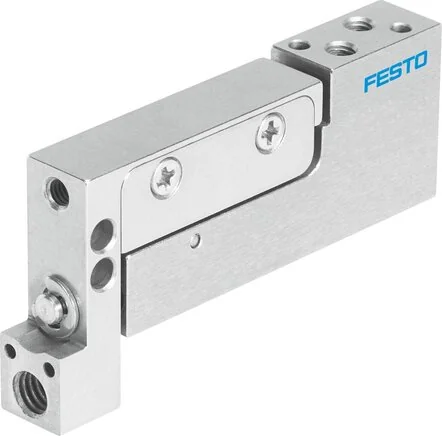

Festo - DGSC-6-10-P-L-569793 - Mini Slide

SKU: festo-dgsc-6-10-p-l-569793

Browse all parts
Festo - DGSC-6-10-P-L-569793 - Mini Slide

€368.64€315.08 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€368.64

Brand
Festo
Guide
Ball cage guide
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
10
Material Note
RoHs compliant
Cover Material
POM
Fastening Type
With Female thread and dowel pin
Material Guide
High-alloyed steel
Piston Ø (mm)
6
Seals Material
NBR
Moving Mass (g)
17
Housing Material
High-alloyed stainless steels
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Force Fy (N)
20
Max. Force Fz (N)
20
Position Detection
without
Repeatability (mm)
0,2
Construction Set Up
Joch kinematics
Max. Torque Mx (Nm)
0,3
Max. Torque My (Nm)
0,4
Max. Torque Mz (Nm)
0,4
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M3
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Max. Effective Load (kg)
0,03
Operating Pressure (MPa)
0,1 to 0,6
Ambient Temperature (°C)
10 to 50
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
12,7
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
17
Max. Usable Load Depending On The Stroke At A Defined Distance Xs (N)
30
EAN
4052568216450
Manufacturer
Festo
