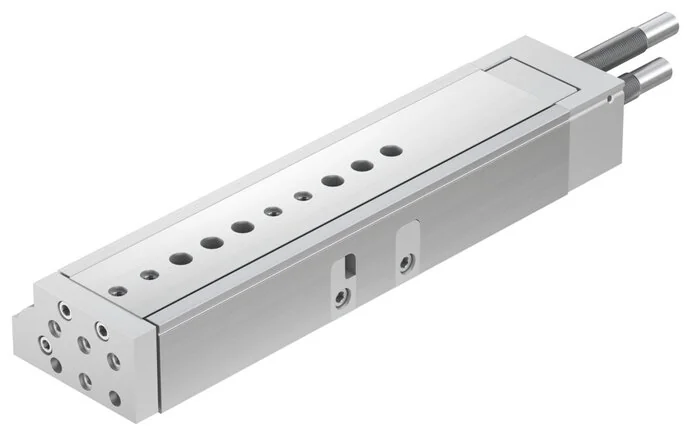

Festo - DGSL-20-150-Y3A-544028 - Mini Slide

SKU: festo-dgsl-20-150-y3a-544028

Browse all parts
Festo - DGSL-20-150-Y3A-544028 - Mini Slide

€1,810.34€1,547.30 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,810.34

Brand
Festo
Guide
Ball cage guide
Dampening
Stoßdämpfer progressiv beidseitig
Stroke (mm)
150
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Fastening Type
With throughway bores
Piston Ø (mm)
25
Seals Material
HNBR
Moving Mass (g)
1566
Housing Material
Aluminium wrought alloy
Max. Speed (m/s)
0,8
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Force Fy (N)
4400
Max. Force Fz (N)
4400
Position Detection
For proximity switch
Repeatability (mm)
±0.01
Construction Set Up
Schlitten
Max. Torque Mx (Nm)
90
Max. Torque My (Nm)
80
Max. Torque Mz (Nm)
80
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
G1/8
Dampening Length (mm)
17
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Operating Pressure (MPa)
0.1 to 0.8
Ambient Temperature (°C)
60
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
7
Alignable End Position Range / Length Rear (mm)
42
Alignable End Position Range / Length Front (mm)
88
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
247
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
295
EAN
4052568183714
Manufacturer
Festo
