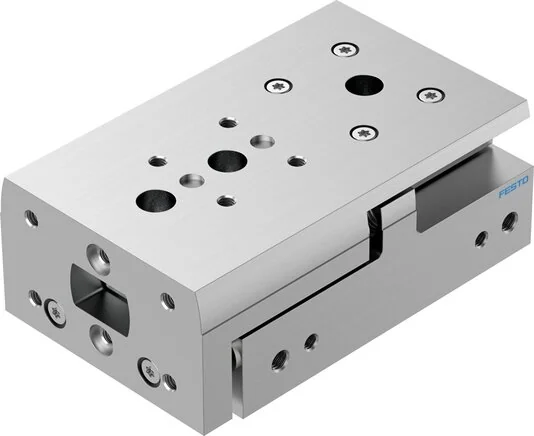

Festo - DGST-12-40-E1A-8078849 - Mini Slide

SKU: festo-dgst-12-40-e1a-8078849

Browse all parts
Festo - DGST-12-40-E1A-8078849 - Mini Slide

€585.34€500.29 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€585.34

Brand
Festo
Guide
ball guide
Dampening
Elastomerdämpfung, beidseitig, Hub nicht einstellbar
Stroke (mm)
40
Material Note
RoHs compliant
Repeatability
<= 0,3 mm
Cover Material
Aluminium wrought alloy
Fastening Type
With throughway bores
Material Guide
High-alloyed steel
Piston Ø (mm)
12
Seals Material
HNBR
Moving Mass (g)
284
Housing Material
Aluminium wrought alloy
Max. Speed (m/s)
0,5
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Force Fy (N)
560
Max. Force Fz (N)
560
Position Detection
For proximity switch
Construction Set Up
Schlitten
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0.1 to 0.8
Ambient Temperature (°C)
60
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,07
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
102
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
136
EAN
4052568446802
Manufacturer
Festo
